XPX-Line

Prepared for the toughest products

Explore Model

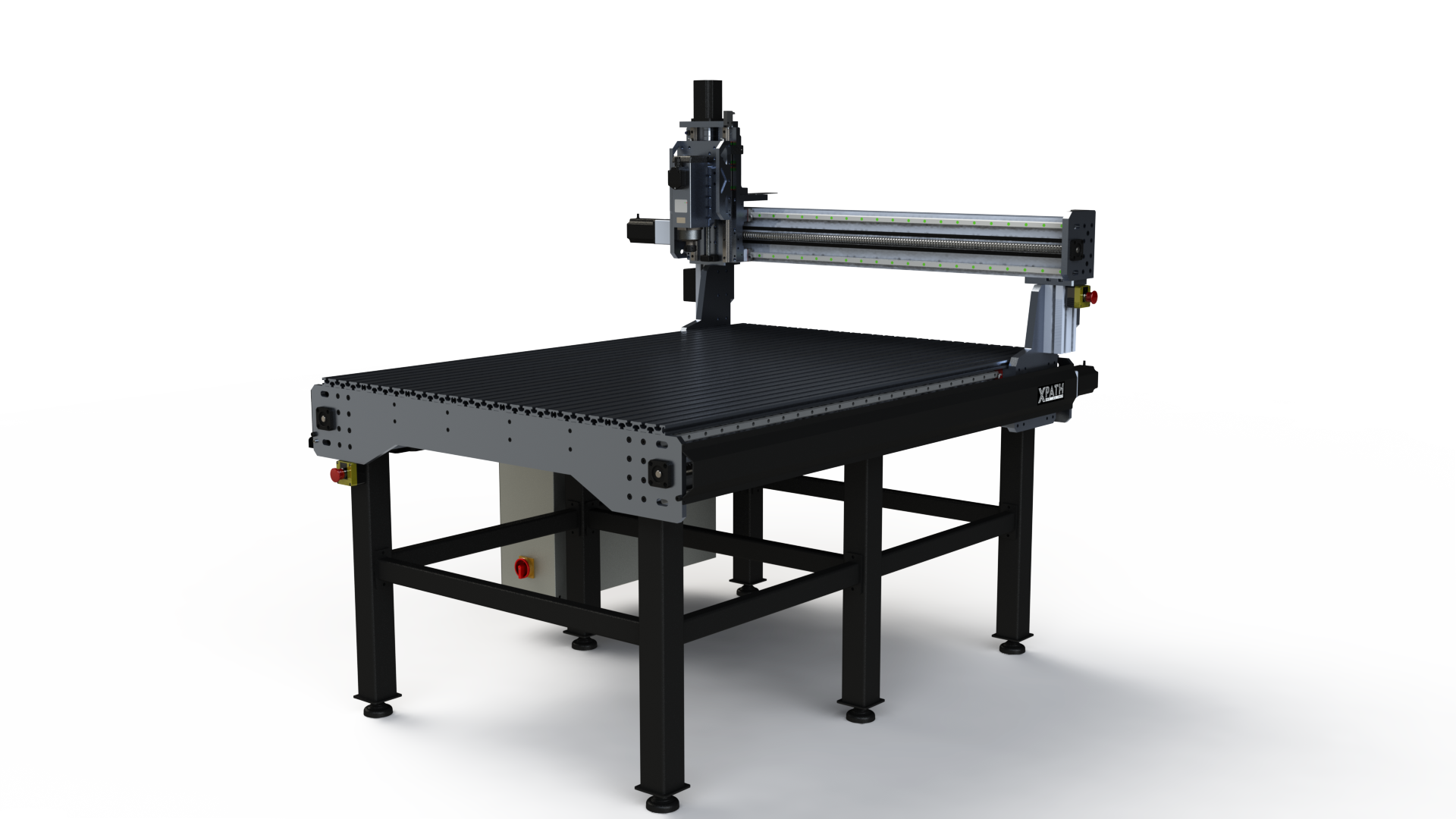

The ultimate solution for precise and reliable machining

XPX-Line - the perfect combination of XP-Line and X-Line technologies. With a elegant modern design, top quality components and excellent construction, this hybrid CNC machine is perfectly prepared for the toughest products.If you're looking for a highly accurate and versatile CNC machine, your search ends with the XPX-Line. This machine is the ultimate investment for those who require exceptional quality and reliability. Equipped with the best linear technology, it offers unparalleled performance that will exceed your expectations. The XPX-Line is fully assembled directly from the pallet with all the highest quality electronics, linear technology and metal base.

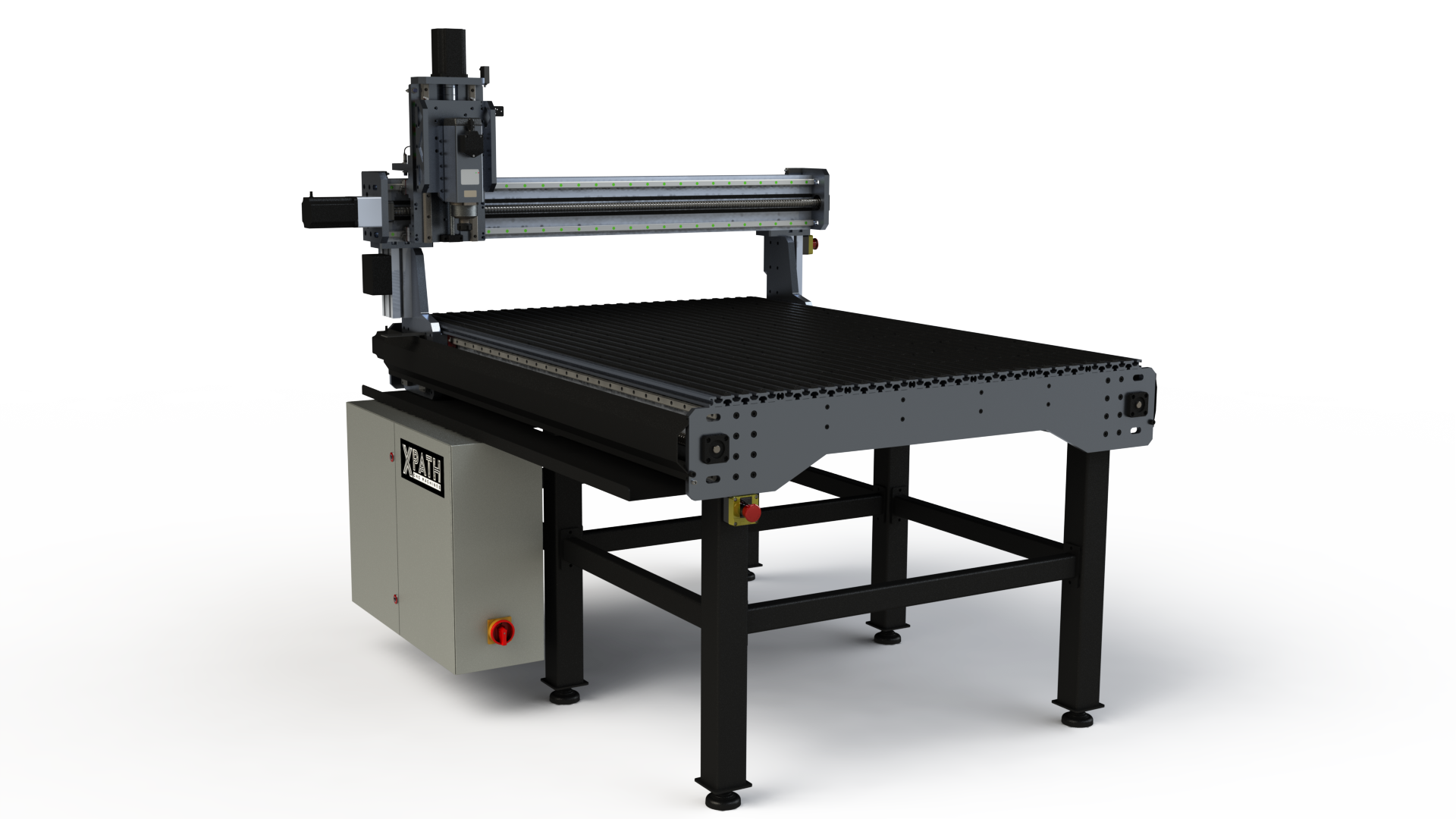

Electrical cabinet

The electrical cabinet includes all electronics with JMC Nema 34 closed-loop motors, AXBB-E controller with UCCNC licensed software, sensors for automatic squaring and limit switches.


Included in electrical cabinet:
  • Industrial steel enclosure
  • All shielded cables
  • 1pcs 5M ethernet cable for connection with your PC
  • AXBB-E motion controller
  • 4pcs Nema 34 8.5Nm Closed loop motors with drivers JMC
  • UCCNC software program with licence key
  • 1pcs 60V 1500W Power supply
  • 5V 60W Power supply
  • 24V 75W Power supply
  • Emi filter
  • Main switch
  • GX connectors for all cables
  • 5 x Mechanical limit switches for all axis
  • 4 x Inductive sensor reference switches for all axis:
    • 1x X-axis
    • 1x Z-axis
    • 2x Y-axis (Auto Squaring)
  • LED strip bellow X-axis
  • Feed rate BOX CNC machine speed control
  • Touch probe Identify and set your work zero in X, Y, and Z-Axis
X Line electrical caibnet
Hardware & system requirements:
  • 3kW spindles require a 3-phase electrical connection with 3x 16A fuse
  • 2.2kW spindles require a 1-phase electrical connection with 1x 20A fuse

The minimal hardware requirements for the computer are as follows:

  • CPU frequency: minimum 1.8 GHz (duo or dual core is recommended.)
  • Graphics card: OpenGL 1.3 or higher compatible
  • RAM: minimum 1GB for XP and 2GB for all other supported OS.
  • Hard drive space: minimum 16GB
  • Ethernet port (it is highly recomanded that you use ethernet port just for UCCNC software, not for internet)
Your configuration XPX-Line



All prices are in EURO and exclude VAT


Download Comparison PDF

Interested in a custom size? Contact us and we'll be happy to discuss your options.

For any further questions regarding the model, specifications or dimensions of the machine, please contact us and we will help you find the right solution.

Specifications

Work area(travel)

X: 1275 mm
Y: 1550 mm
Z: 285 mm

Outside dimensions

Lenght: 2100 mm
Width: 1800 mm
Height: 1800 mm

Clamping area

X: 1260 mm
Y: 1800 mm

Clearance below X axis

236 mm (without table)

Cutting Speed

12500 mm/min Nema 34 8.5 Nm

Accuracy

- 0.023/300 mm

Repeatability

+/- 0.02 mm

Resolution: X/Y/Z

+/- 0.001 mm

Approx weight

490 kg basic weight of machine

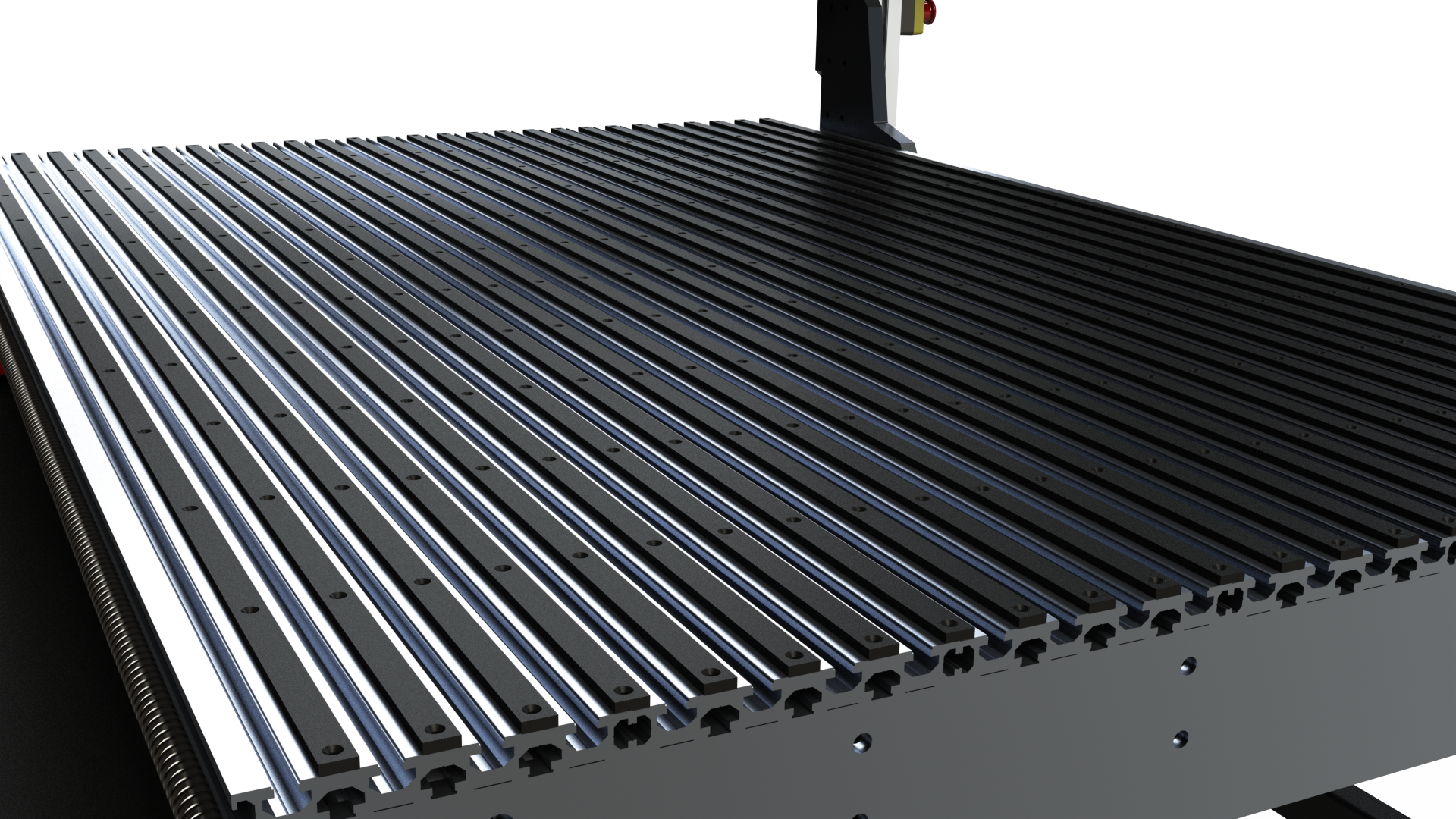

+ 90 kg with optional Aluminium table

+ 10 kg with optional Spindle and VFD

What's included

  • Completely assembled CNC machine
  • Electrical cabinet
  • Leg Kit completely assembled
  • Heavy duty and rigid construction
  • High-quality ball screws and bearings by HIWIN on all axes
  • 2 x linear rails HIWIN 20mm for X-Axis with 4pcs linear blocks
  • 2 x linear rail HIWIN 20mm on each side for Y-Axis with 8pcs linear block
  • 2 x linear rail HIWIN 20mm on Z-axis with 4pcs linear blocks
  • 2 x Ball-screw motion 25x10mm on Y-axis
  • 1 x Ball-screw motion 25x10mm on X-axis
  • 1 x Ball-screw motion 16x5mm on Z-axis
  • Base frame assembly with HD 180x90 ALU profiles
  • USB key with all documentation and manual
