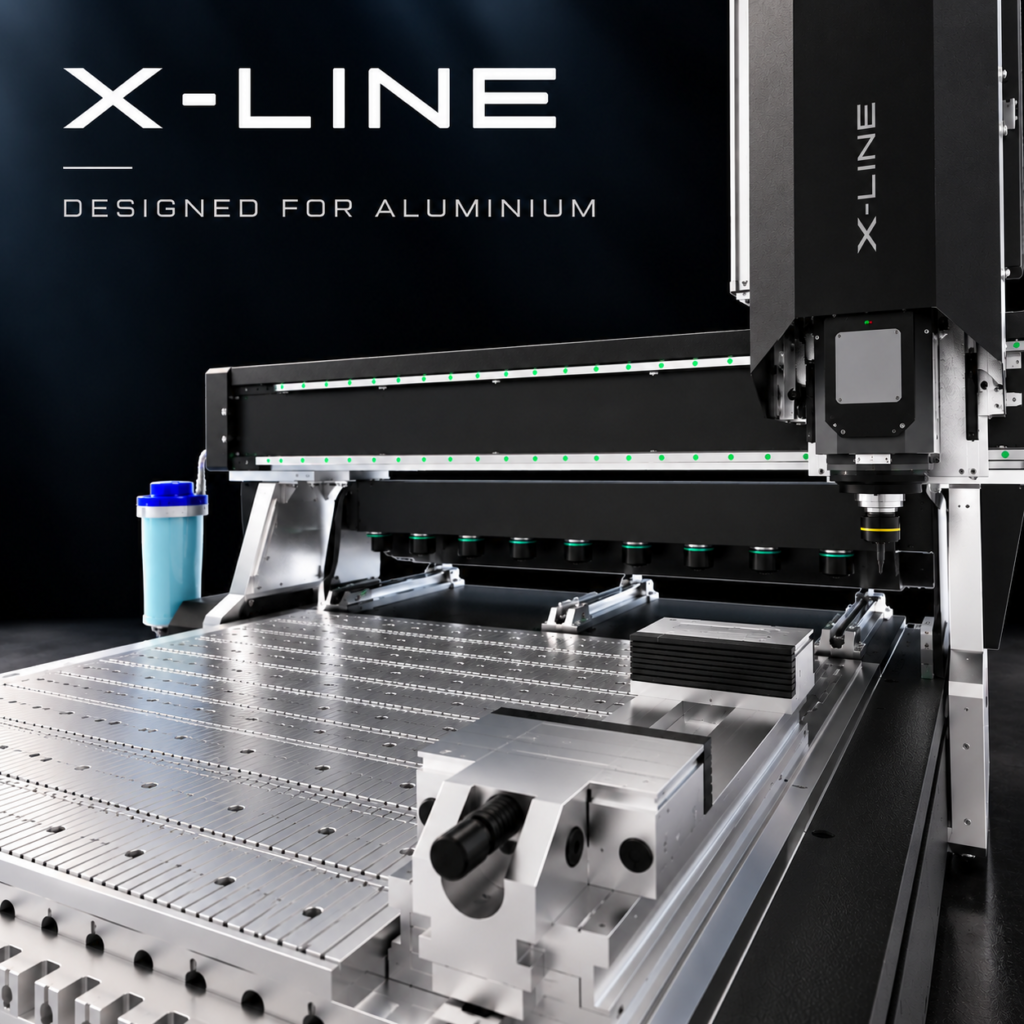

Designed for machining aluminium

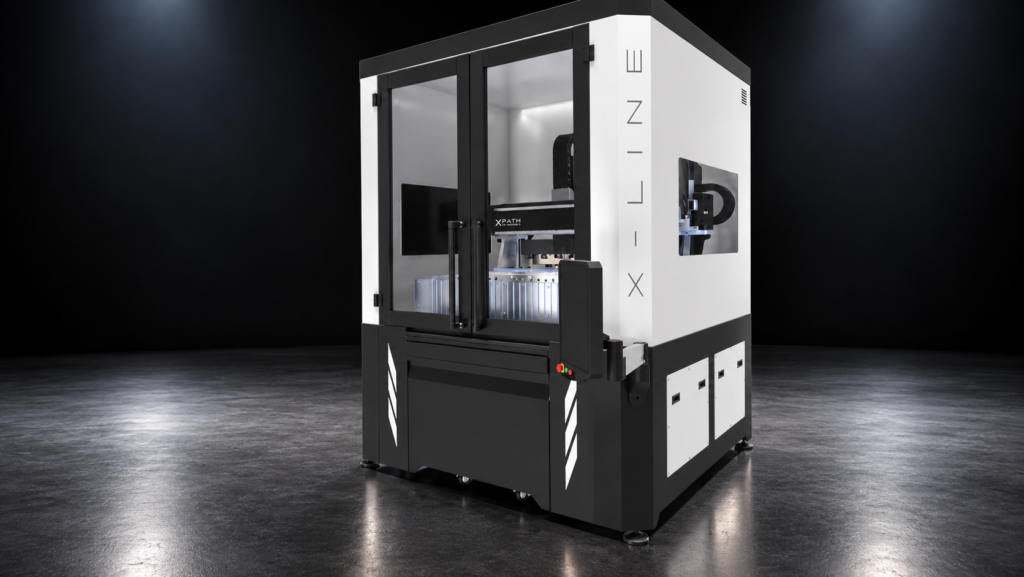

The X-LINE is a high-performance CNC machine developed exclusively for aluminum machining, where rigidity, stability, and control over chips are critical. The base is filled with epoxy granite, which provides exceptional vibration damping and allows for aggressive cutting parameters without loss of accuracy.
The X-LINE is the ideal choice for production environments where machining speed and a clean working environment are important, without compromising on quality.
Epoxy granite base high – speed stability
The base of the machine is filled with epoxy granite, a material used in high-end CNC machines due to:
- excellent vibration damping
- high thermal stability
- exceptional rigidity during dynamic machining
This design enables fast and aggressive aluminum cutting while ensuring precision and superior surface quality.
Designed for aluminium
The X-Line is not a universal machine – it is specifically optimized for aluminum. An optimized chip collection tray is integrated bellow the machine and can be easily pulled out for fast chip removal and cleaning — keeping the machine clean and production running efficiently.
All components are optimized:
- for high speeds
- large material removal
- for long-term usage in serial production
The result is a significantly shorter cycle time and higher productivity compared to conventional CNC solutions.
Clean and safe working conditions
The X-LINE has a completely enclosed safety chamber designed specifically for aluminum chips. The shape and internal geometry prevent chip accumulation and enable:
- efficient material removal
- easier cleaning
- A constantly organised working environment
This means less downtime, greater safety, and better control over the process.
Maximum clamping flexibility
The X-Line is equipped with solutions that increase machine efficiency:
The front clamping plate enables vertical machining, which is ideal for machining sides, housings, and complex aluminum components.
Removable vacuum table
The vacuum table allows quick and easy clamping of flat workpieces and can be quickly removed if necessary for classic mechanical clamping.
Areas of application
X-LINE is the ideal choice for:
- mass production of aluminum parts
- automotive and aerospace industries
- processing of aluminum housings and plates
- high-speed milling of thin-walled components
- production environments with high cleanliness requirements
What you get with X-LINE
- Epoxy granite base for maximum stability
- Machine optimized specifically for machining aluminum
- Enclosed safety chamber with efficient chip removal
- Front clamping plate for vertical machining
- Removable vacuum table for quick work adjustments
- Higher productivity and shorter cycle times
WORK AREA (MOVEMENTS)
X: 1100 mm
Y: 850 mm
Z: 210 mm
OUTSIDE DIMENSION
Width: 1800 mm
Depth: 1600 mm
Height: 2300 mm
MAXIMUM SPINDLE SPEED
up to 24.000 rpm
SPINDLE POWER
3.8 – 8.0 kW
MOVEMENT SPEED
15m/min
CONTROLLER
UCCNC
MOTORS
Industrial SERVO 24bit encoders
DRIVES
Ballscrew 0.023/300mm 23µm
MACHINE WEIGHT
1250kg
