XP-LINE CNC Milling Machine
The XP-LINE is a professional CNC milling machine designed for companies that need reliable in-house machining capabilities. Its robust aluminium frame, flexible configuration options and choice of working areas make it suitable for a variety of manufacturing requirements.
Available in three standard sizes, with custom dimensions available on request, XP-LINE supports the machining of aluminium, acrylic sheets (Plexiglas), other plastics, wood and composite materials, depending on the application and machine configuration.
Rigid Aluminium Base Frame
The XP-LINE features a solid aluminium base frame aligned using a 3-axis CNC machine. This manufacturing approach supports accurate alignment of the machine structure and provides a stable foundation for machining operations.
Standard Sizes and Custom Configurations

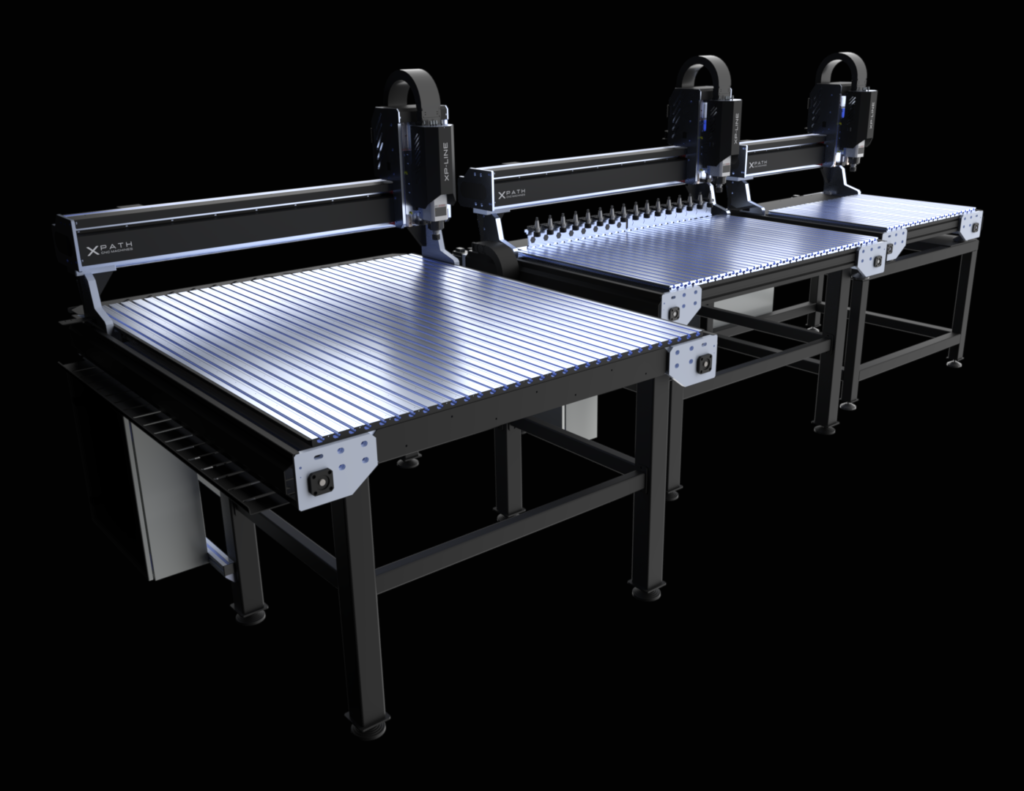

XP-LINE is available in three standard sizes: S, M and L. Each model provides a different working area to accommodate different workpiece dimensions and production needs.
Custom dimensions are also available on request, allowing businesses to discuss a configuration suited to their specific workspace, parts and manufacturing requirements. Contact XPATH CNC to identify the appropriate setup for your application.
Designed for In-House Production
The XP-LINE is designed for businesses that want to carry out CNC machining in-house rather than outsource these operations. It supports companies that manufacture their own components and need flexibility in their day-to-day production.
In-house machining of components
Production of individual parts and small batches
Integration into existing manufacturing workflows
Flexible machining for different production requirements
Practical Performance and Value
The XP-LINE combines professional CNC milling capabilities with a robust aluminium frame and flexible configuration options. It offers a practical balance of functionality, construction and investment cost for businesses looking to establish or expand their in-house machining capabilities.
Materials and Applications
The XP-LINE can be used to machine a range of materials, depending on the material properties, tooling, machining parameters and machine configuration.
Typical applications include:
Acrylic sheets (Plexiglas) and other plastic panels
Aluminium components
Wood and composite materials
Custom-shaped parts and components
Individual parts, small batches and series production
For applications involving acrylic or other plastics, the appropriate tooling and machining parameters should be selected for the specific material and required finish.
Key Features
- Three standard sizes: S, M and L
- Custom dimensions available on request
- Aluminium frame aligned using a 3-axis CNC machine
- Configuration options for different manufacturing requirements
- Suitable for a range of materials and production applications
| Feature | XP-LINE S | XP-LINE M | XP-LINE L |
|---|---|---|---|
| Working area X × Y × Z | 745 × 745 × 175 mm | 1250 × 950 × 175 mm | 1250 × 1450× 175 mm |
| Outside dimension W x D x H | 1300 x 1250 x 1900 mm | 1700 x 1500x 1900 mm | 1700 x 2000 x 1900 mm |
| MAX spindle RPM | 24.000 rpm | 24.000 rpm | 24.000 rpm |
Spindle power ATC or MTC | 2.2 kW ATC 2.2- 3.0 kW MTC | 2.2 kW ATC 2.2- 3.0 kW MTC | 2.2 kW ATC 2.2- 3.0 kW MTC |
| Movement speed | 15m/min | 15m/min | 12m/min |
| Controller | UCCNC | UCCNC | UCCNC |
| Motors | HYBRID SERVO with encoders | HYBRID SERVO with encoders | HYBRID SERVO with encoders |
| Drives | Ball-screw 0.052/300mm 52µm | Ball-screw 0.052/300mm 52µm | Ball-screw 0.052/300mm 52µm |
| Machine weight | 306kg | 330kg | 410kg |
