DESIGNED FOR EVERY WORKSHOP

XPX-LINE

xpx-line

PREPARED FOR THE TOUGHEST PRODUCTS

XPX-Line - the perfect combination of XP-Line and X-Line technologies. With a elegant modern design, top quality components and excellent construction, this hybrid CNC machine is perfectly prepared for the toughest products.This machine is the ultimate investment for those who require exceptional quality and reliability.

Explore Model

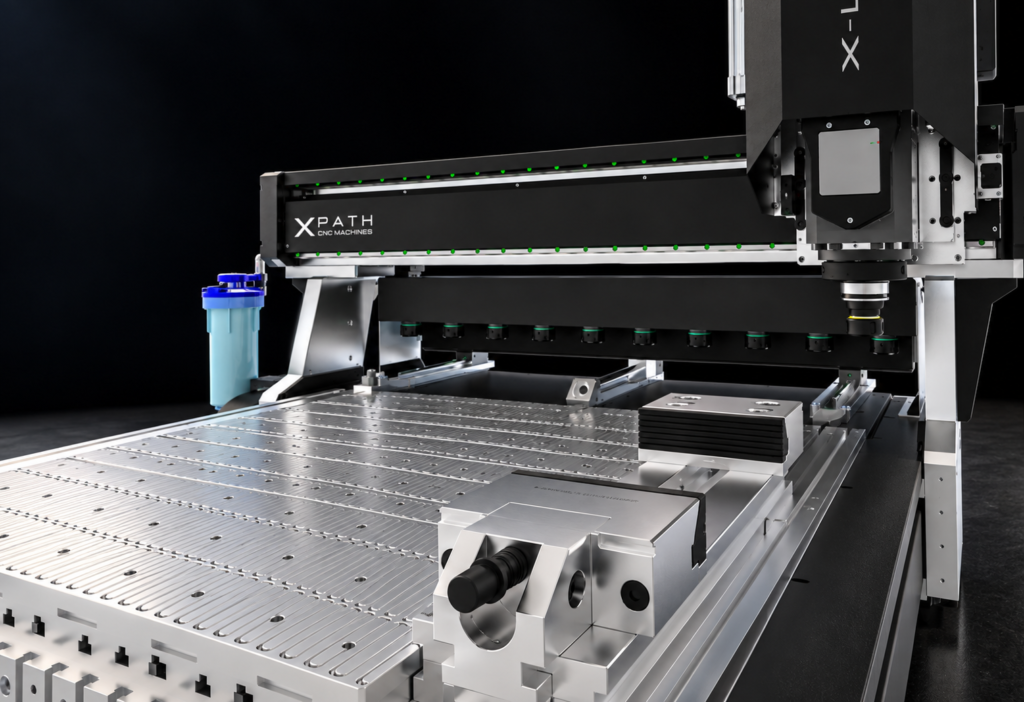

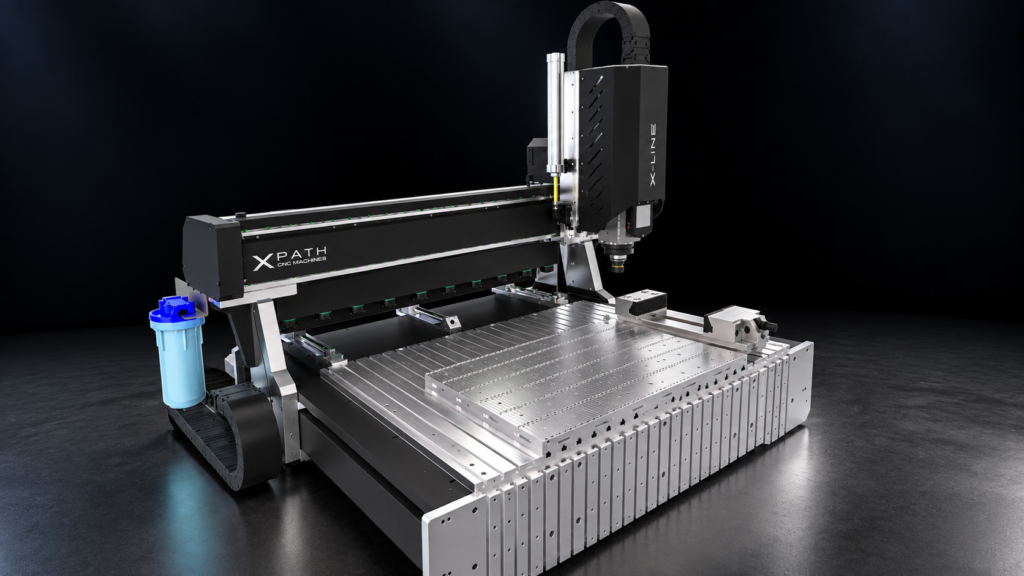

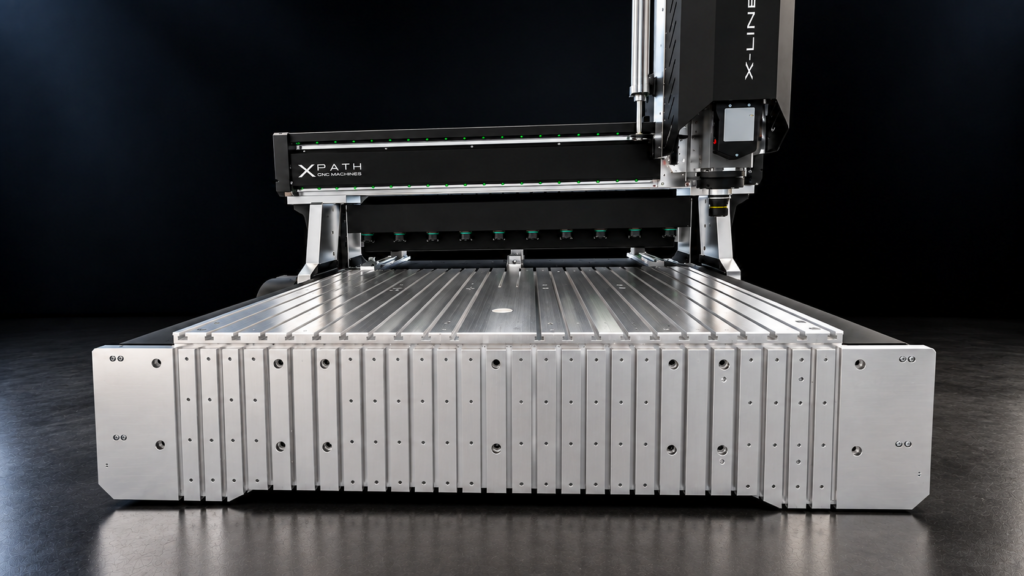

X-LINE

x-line

HIGH-PERFORMANCE CNC MACHINE

X-Line is a high-performance CNC machine. It is designed for precise processing of all soft materials such as aluminium, brass or plastic. It is suitable for companies and educational institutions that are involved in prototyping or small-scale production. The added value of the machine is also the specially designed X-axis, which is not made from an extruded profile like most CNC machines of this class but is made of aluminum plates, which allows for even more rigidity and precision.

Explore Model

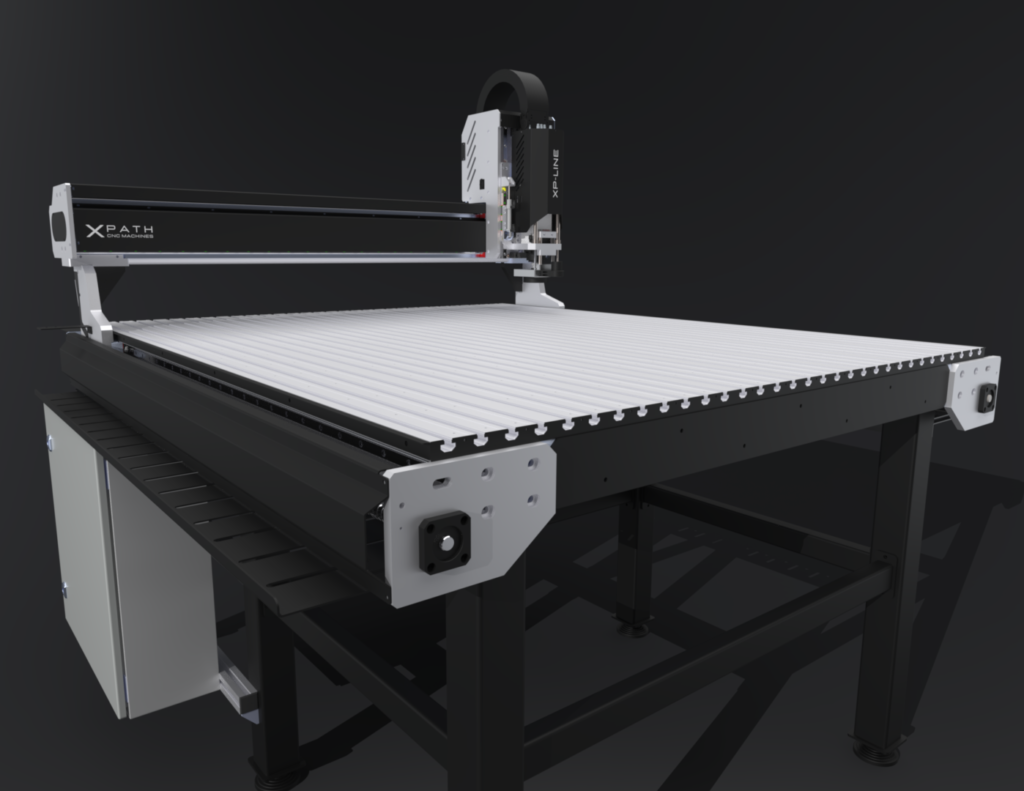

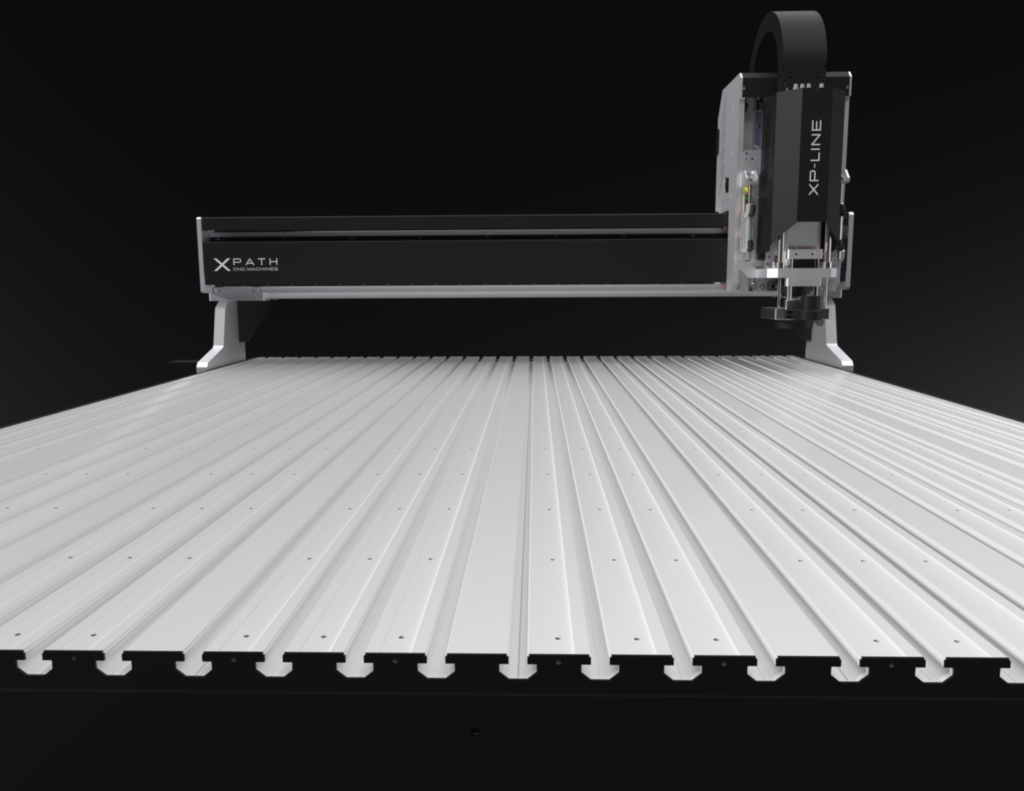

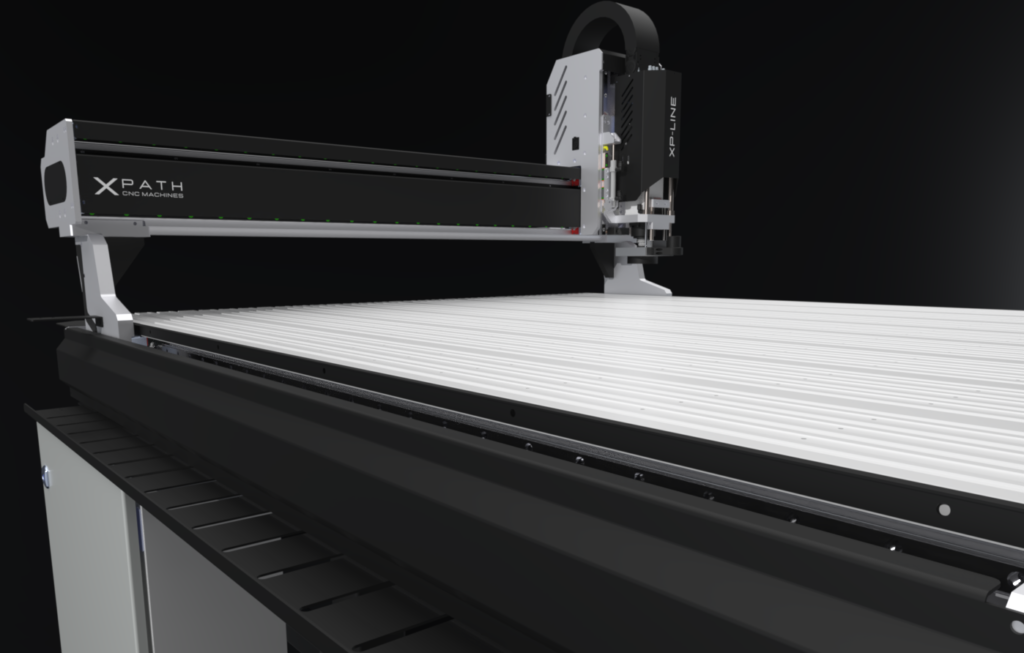

XP-LINE

REDESIGN

xp-line

ALL-ROUND PERFORMANCE

The completely redesigned XP-LINE now comes fully equipped with everything you need and is Plug & Play ready. Enjoy smooth and precise movements with the best HIWIN® linear technology.

Explore Model

XP-LINE

xp-line

RELIABLE AND AFFORDABLE CNC MACHINE

The XP-Line is designed for a very wide range of users and is suitable for individuals and companies who need a reliable and user-friendly 3- axis CNC machine for machining a wide range of soft materials such as wood, plastics and various composites. It is a great all-rounder CNC machine and is ideal for a wide range of products.

Explore Model

P-LINE

p-line

SIMPLE USEFUL AND EASY TO USE

The P-Line is the younger brother of our XP-Line. It is simple, useful and easy to use for basic users working with wood or plastic products. It has 20 mm linear guides and precise ball-screw spindles, which puts it at the very top of the entry- level CNC class. The machine is fully assembled and is equipped with a Black-Box controller and all the necessary electrical wiring.

Explore Model

COMPARISON TABLE

P-Line XP-Line XPX-Line X-Line
Sector Home business Small business Professional use Professional use
Materials Wood, Plastic Plastic, Composites, Wood Plastic, Composites, ALU, Wood Plastic, Composites, ALU
Size Small Medium Large Small Medium Large One size One size
Clamping Area (X-Y) 530 x 660 880 x 660 880 x 950 900 x 880 1315 x 1130 1315 x 1730 1260 x 1800 890 x 960
Working Area (X-Y) 450 x 500 800 x 500 800 x 780 850 x 700 1250 x 940 1250 x 1540 1275 x 1550 890 x 680
Outside Dimensions (W-L) 825 x 880 1190 x 880 1190 x 1170 1290 x 1100 1700 x 1350 1700 x 1950 1800 x 2100 1420 x 1200
Bellow X-Axis 160 mm 200 mm 236 mm 260 mm
X-Axis profile 60 x 90 mm 90 x 90 mm 90 x 180 mm 110 x 200 mm
Linear Rails X,Y-20 mm Z-15 mm X,Y-20 mm Z-15 mm X,Y-20 mm Z-20 mm X,Y-20 mm Z-20 mm
Ballscrew XY-16x10 mm Z-12x4 mm XY-20x10 mm Z-16x5 mm *L- Y-25x10 mm XY-25x10 mm Z-16x5 mm XY-20x10 mm Z-20x5 mm
Motors Stepper NEMA 23 3Nm Closed-Loop NEMA 34 4.5Nm Closed-Loop NEMA 34 8.5Nm AC servo motor 750W
Controller BLACK-BOX AXBB-E AXBB-E AXBB-E
Approx. Basic Weight 62 kg 74 kg 82 kg 145 kg 172 kg 210 kg 490 kg 270 kg
Warranty 12 months 12 months 36 months 36 months

12 to 36 MONTHS WARRANTY

LOW MAINTENANCE AND SERVICE COSTS

SUPPORT AND ASSISTANCE

About Us

The constant search for a suitable and affordable CNC machine on the EU market was like looking for a needle in a haystack - unsuccessful, but for us an absolutely additional motivation that pushed us to design and build the machine ourselves. We were positively impressed by the results and, at the suggestion of others, we decided to bring the product to market. As a small team, we registered our company in 2021, just to bring the product we were looking for to a wider audience looking for a high quality, accurate and affordable CNC machine. We are different from the competition in that almost all of our machines are fully assembled and ready for immediate use.

We work with values such as responsibility, knowledge, cooperation, quality and flexibility. When you place an order, we listen to your needs and try to take them into account as much as possible. We know how to be flexible so that we can work together to create optimal solutions for you.
